Description

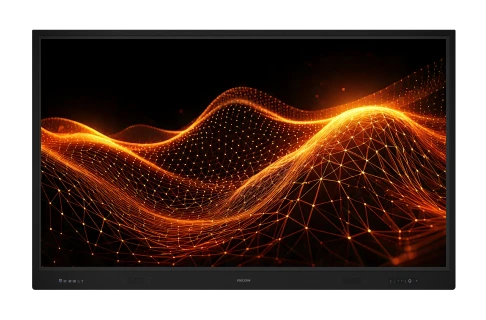

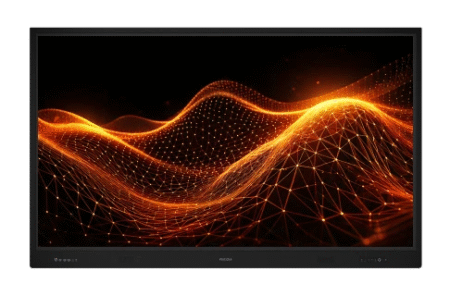

A8610 Interactive Whiteboard
- Panel size (diagonal): 86″ wide
- Enjoy crisp graphics with 3840 x 2160 resolution
- Multi-touch point functionality (up to 40 touch points)
- Supports both wired and wireless connections
|
GENERAL |
|
|
Front Interface |
HDMI x1, USB C x1, USB A 3.0 x2, USB B 3.0 x1, MIC In x1 |
|
Rear Interface |
USB A x3, USB C x1, USB B x3, HDMI In x2, DisplayPort x1, OPS Slot x1, RS232 x1, Audio Out x1, Line out or Headphone x1, SPDIF x1, HDMI Out x1, LAN 1000Base-T x2 |
|
Pre-installed app |
Whiteboard, Picture-In-Picture, Eshare, Browser, Settings, Google Play Store, Google Calender, Files by Google, Search, Chrome, Gmail, Maps, YouTube, Drive, YT Music, Google TV, Meet, Photos |
|
Dimensions: W x D x H (mm) |
1,981 x 92 x 1,217 |
|
Package size: W x D x H (mm) |
2,119 x 225 x 1,320 |
|
Weight (kg) |
65 |
|
Housing material (face frame/back shell) |
Aluminium/metal plate |
|
Housing colour (face frame/back shell) |
Black/black |
|
VESA |
4-M8 screw hole 800 x 400 mm |
|
DISPLAY PANEL |
|
|
Panel size: diagonal |
86″ wide |
|
Effective area: W x H (mm) |
1,895 x 1,065 |
|
Resolution: maximum (Full HD) |
3,840 x 2,160 |
|
Colours: maximum |
1,070,000,000 |
|
Brightness: maximum (cd/m²) |
400 |
|
Contrast ratio |
4,000 : 1 |
|
Pixel pitch (mm) |
0.4935 x 0.4935 |
|
Response: grey to grey (ms) |
8 |
|
Refreshing frequency |
60 Hz |
|
Viewing angle: H/V (°) |
178/178 |
|
LED lifetime |
50,000 hours |
|
TOUCH SYSTEM |
|
|
Touch technology |
Infrared Touch Frame/ Zero Bonding |
|
Accuracy (mm in touchable area) |
1 |
|
Multi touch |
Win11/10/8/7/XP, Android |
|
Single touch |
Linux, Mac OS X, Chrome |
|
Protection glass thickness: including AR coating (mm) |
3.2 |
|
Maximum touch points |
40 |
|
Coating |
Anti-glare, Anti-fingerprint |
|
Hardness |
8 H |
|
CONTROLLER/ELECTRICAL |
|
|
OS |
Android 13.0 EDLA |
|
Audio output power |
15 W x2 |
|
RAM |
8 GB |
|
ROM Storage |
128 GB |
|
WIFI |
Wifi5 Module, Wifi6 Module |
|
Bluetooth |
BT 5.2 |
|
ACCESSORIES |
Power cable, Touch pen x2, Read this first sheet, Quick guide sheet, Batteries AAAx2, Remote control, USB type C cable (2m), HDMI 2.0 cable (3m), USB A-B 3.0cable (3m), Plastic clamp (3pcs+3pcs) |
