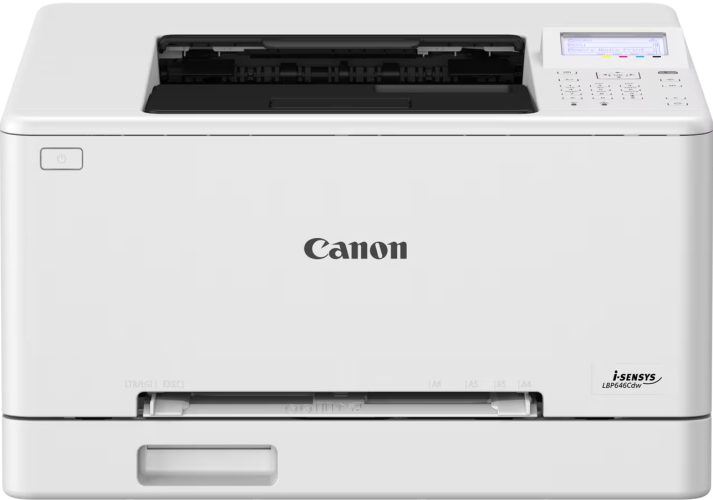

Canon i-SENSYS LBP646Cdw Printer Laser Colour A4 25 ppm USB Ethernet LAN Wi-Fi

Print Specifications

Print Speed

Single sided: Up to 25 ppm (A4), Up to 45.3 ppm (A5-Landscape)
Double Sided : Up to 15 ipm (A4)

Printing Method

Colour laser beam printing

Print Quality

Up to 1200 x 1200 dpi

Warm-up Time

Approx. 13 seconds or less from power on

First-Print-Out Time

Colour approx.: 10.57 seconds or less
Mono approx.: 10.52 seconds or less

Printer Languages

UFRII

Fonts

45 PCL fonts, 136 PS fonts

Print Margins

5 mm-top, bottom, left and right

Advanced Printing Features

Encrypted Secure Print
Secure Print
Print from USB memory key (JPEG/TIFF/PDF)
iOS: AirPrint, Canon PRINT app
Android; Mopria certified, Canon Print Service Plug-in, Canon PRINT app, IPP everywhere

Media Handling

Paper Input (Standard)

250-sheet cassette
1-sheet manual feed slot

Maximum Paper Input Capacity

Up to 251 sheets

Paper Output

100-sheet

Media Types

Plain paper, Recycled paper, Heavy Paper, Thin paper, Colour paper, Coated paper, Label, Post card, Envelope

Media Sizes

Cassette :
A4, A5, A5 (Landscape), B5, A6, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Post card, Indexcard, Envelop (COM10, DL, C5, Monarch),
Custom sizes: Min. 76.2 x 127 mm Max. 216.0 x 355.6 mm.

Multi-purpose tray:
A4, A5, A5 (Landscape), B5, A6, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Post card, Indexcard, Envelope (COM10, DL, C5, Monarch),
Custom sizes: Min 76.2 x 127 mm Max. 216.0 x 355.6 mm.

Media Weights

Cassette: 60 to 163 g/m² (Up to 200 g/m² with Coated paper)
Multi-purpose tray: 60 to 163 g/m² (Up to 200 g/m² with Coated paper)

Double Sided Printing

Automatic
Cassette:
A4, B5, Legal, Letter, Executive, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K
Custom size – Min. 182 x 257 mm Max. 216.0 x 355.6 mm
60 to 200 g/m²

Interface & Software

Interface Type

USB 2.0 Hi-Speed, 10BASE-T/100BASE-TX/1000Base-T, Wireless 802.11b/g/n, Wireless Direct Connection

Operating System Compatibility

Windows® 11/ Windows® 10 / Server® 2025 / Server® 2022 / Server® 2019 / Server® 2016
Mac OS X version 10.15 & up
Linux

Network Protocol

Print:
TCP/IP (LPD/Port9100/IPP/IPPS/WSD)

Management:
SNMPv1, SNMPv3 (IPv4,IPv6)

Security: TLS1.3, IPSec, IP/Mac address filtering, IEEE802.1X, SNMPv3, SSL (HTTPS, IPPS)

Security (wireless):
Infrastructure Mode:
WPA-PSK(AES), WPA2-PSK(AES), WPA3-SAE (AES), WPA-EAP(AES), WPA2-EAP(AES), WPA3-EAP(AES)
Access Point Mode:
WPA2-PSK(AES), WPA3-SAE (AES)

Software and Printer Management

Remote User Interface (RUI),
Department ID Management,
Toner Status Tool,
iW Enterprise Management Console: Server-based software for centralised management of a fleet of devices
Cooperating with External Security Audit System (Security Information and Event Management)
eMaintenance: embedded RDS allows remote eMaintenance services such as meter capture, automatic consumables management and remote diagnostics.

General Features

Recommended Monthly Print Volume

250 – 2,500 pages per month

Duty Cycle

Max. 30,000 pages per month

Processor Speed

1200MHz

Memory

1GB

Storage

4GB

Control Panel

5 Line LCD, 3 LED (Job, Error, Energy saver), Buttons, 10-key numeric keypad

Dimensions with Trays
(W x D x H)

425 mm x 418 mm x 265 mm

Weight

Approx. 14.5 kg

Operating Environment

Temperature: 10 to 30ºC (50 to 86ºF)
Humidity 20 to 80% RH (no condensation)

Power Source

220-240V (±10%) 50/60Hz (±2Hz)

Power Consumption

Maximum: Approx. 980W or less
Active printing: Approx. 580W
Standby: Approx. 12W or less
Sleep: Approx. 1.0W or less
Typical Electricity Consumption (TEC): 0.23 kWh/week
For detailed information relating to Lot26 regulation, please go to: https://www.canon-europe.com/business/lot26/

Noise Levels

Sound power
Active: Simplex CL 66 dB or less / BW 65dB or less
Duplex 65 dB or less
Standby: Inaudible

Sound pressure
Active: Simpelx 51 dB or less
Duplex CL 50 dB or less / BW 51dB or less
Standby: Inaudible

Consumables

Cartridges

Cartridge 075 Black (1,400 pages)
Cartridge 075H Black (3,500 pages)
Cartridge 075 Cyan (1,300 pages)
Cartridge 075H Cyan (2,500 pages)
Cartridge 075 Magenta (1,300 pages)
Cartridge 075H Magenta (2,500 pages)
Cartridge 075 Yellow (1,300 pages)
Cartridge 075H Yellow (2,500 pages)
